IceRocket Dry Ice Blaster

Professional-grade, entry-level dry ice blasters





TELL ME MORE HOW IT WORKS

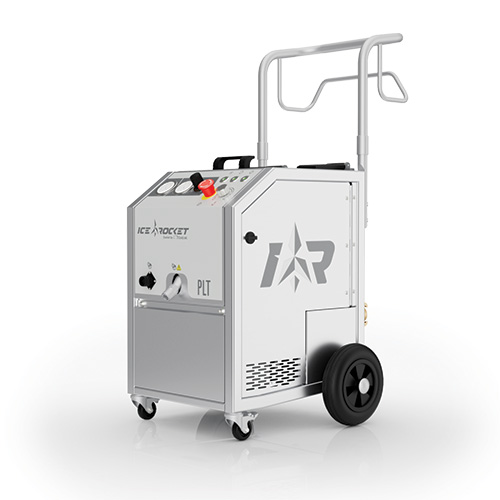

IceRocket dry ice blaster

IceRocket PLT dry ice blaster analog controls

Industry:

Application:

NEXT LEVEL CLEAN

The IceRocket dry ice blaster was designed as an entry-level, professional-grade machine.

This dry ice blaster is ideal for those looking to improve their cleaning and maintenance operations utilizing dry ice blasting to achieve less downtime and more throughput.

As pioneers and innovators in dry ice blasting, we engineered this machine to be more aggressive and more efficient than other entry-level dry ice blasters. Our machines are also supported by world-class, local-to-you service & support technicians to keep you blasting and making money!

TELL ME MORE DOWNLOAD SPECS

Optimal Setup.

Dry ice blasting requires ample dry air.

In order to be best set for success, we suggest having the following pieces of equipment:

✔ State-of-the-art dry ice blaster (we have you covered)

✔ 15+ HP rotary screw air compressor w/ ample storage tank

✔ Desiccant air dryer, or air treatment of some sort (moisture is the enemy of dry ice!)

✔ Dry ice supplier (we can put you in touch!)



TALK TO AN EXPERT

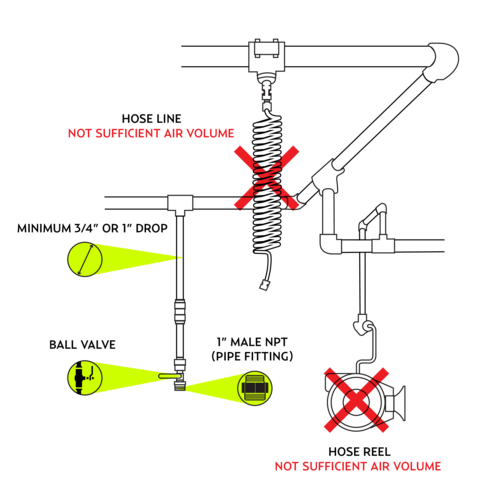

Dry ice blasting - air requirements



How does dry ice blasting work?

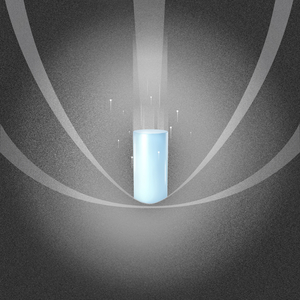

kinetic energy

KINETIC ENERGY

Impact of pellets creates a kinetic energy effect. The soft dry ice is accelerated by compressed air through specially designed nozzles at supersonic speeds.

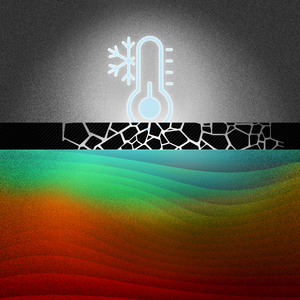

Thermodynamic shock

THERMODYNAMIC SHOCK

Cold temperature of dry ice pellets creates a thermal effect. The temperature of dry ice (-109F/- 78.5C) causes the contaminant to embrittle. This helps break the bond between the substrate and the contaminant.

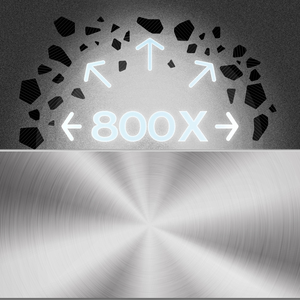

co2 explosion

CO2 EXPLOSION

Expansion of the dry ice pellets. Dry ice pellets sublimate upon impact, volumetrically expanding in size by 800X, removing the contaminant.

 TALK TO AN EXPERT

User Friendly Controls.

Analog controls for optimal performance.

The basic analog controls provide familiarity that help to reduce the learning curve for operators. We always suggest starting low – low blast pressure / low feed rate –  and working your way up.



TALK TO AN EXPERT DOWNLOAD SPECS

Heavy Duty Design.

Designed for heavy duty use around your facility.

Our machines have been engineered with the most extreme applications in mind. That’s why we use the highest quality parts and build our machines to last.



TALK TO AN EXPERT DOWNLOAD SPECS

Greater Versatility.

For contaminants that are delicate or stubborn.

We have been engineering and implementing dry ice blasting products since 1988 across dozens of industries. This has provided us great detail and data around the requirements for each unique application.

This knowledge has led us to engineer and develop more than a dozen applicators and over 60 nozzles for any unique blasting scenario.



TELL ME MORE INDUSTRIES SERVED

Service & Support.

Supported by world-class, local-to-you service technicians.

We understand that when your machine is down, you are losing money. That’s why we have a team of service technicians strategically located to provide local-to-you service when you need it most. We also offer after-hour and weekend support via chat, email, or phone because we understand how crucial our machines are for your business.



TALK TO AN EXPERT SERVICE & SUPPORT

Return on Investment.

Here is how you can begin saving money with dry ice blasting!

See how you can quickly realize your return on investment and start generating serious profits.

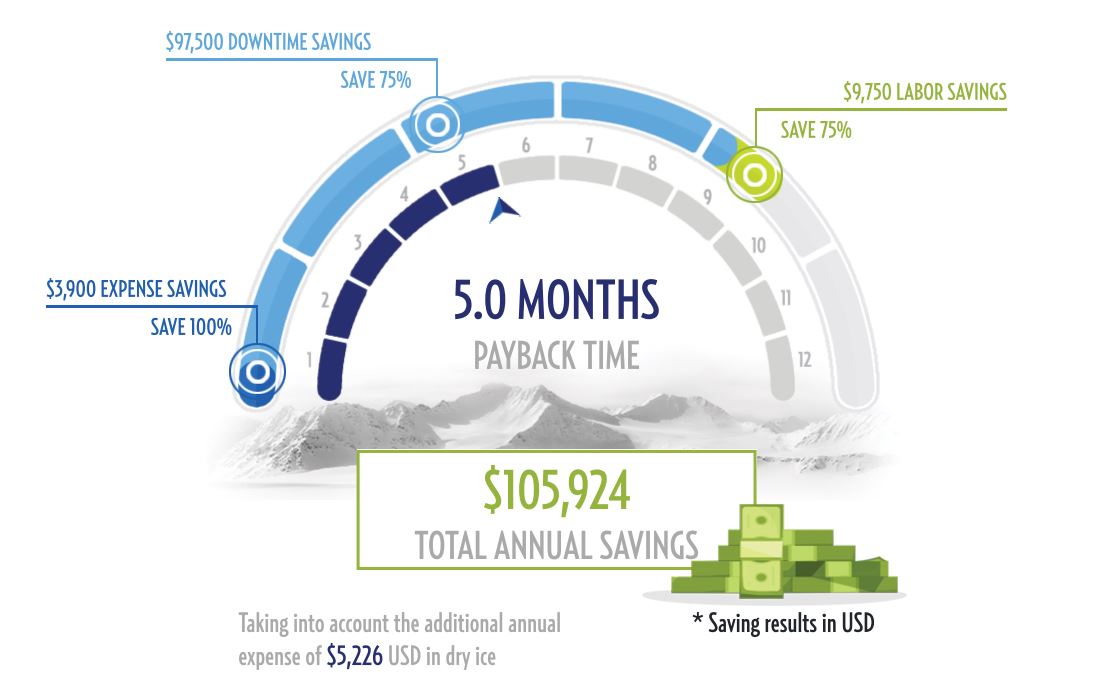

Return on Investment - dry ice blaster in plastics



TELL ME MORE DOWNLOAD SPECS

See dry ice blasting in action!

IceRocket Specifications

  •

    IceRocket PLT

    Straight 3mm dry ice pellet blaster



    Dimensions (L x W x H)

    18.8in x 20.4in x 38.6in

    48mm x 52mm x 98mm



    Weight

    106 lb

    48 kg



    Power Requirements

    100-240V AC / 50-60Hz



    Dry Ice Hopper Capacity

    13 lb

    6 kg



    Blast Media

    3mm dry ice pellets only



    Particle Control System

    No



    Control System

    Analog + Motor driver



    Feed Rate

    Up to 1.5 lb/min

    Up to 0.68 kg/min



    Air Supply Connection

    3/4 in claw coupling



    Air Supply Range

    72-145 psi

    5-10 bar



    Air Consumption

    50 cfm at 80 psi

    1.41 m3/min at 5.5 bar



    Blast Pressure Range

    29-145 psi

    2-10 bar



    Blast Hose Connection

    1/2 in QDC



    Internal Piping

    3/4 in

    19.05 mm



    Learn More

Reduce downtime and increase throughput with dry ice blasting!

TALK TO AN EXPERT DOWNLOAD SPECS
