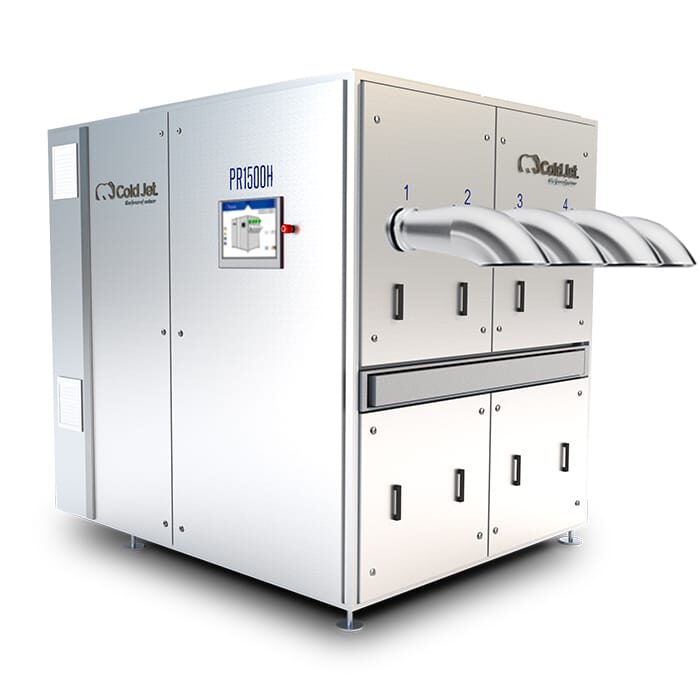

The PR1500H

Industrial Dry Ice Production on Demand.

The PR1500H stands as a benchmark in industrial dry ice pelletizing, engineered to deliver high-density dry ice pellets from the very first stroke. By utilizing advanced closed-chamber technology, the unit ensures rapid production shifts and an exceptionally short start-up time, maximizing your operational efficiency.

SUPERIOR MULTI-BARREL ENGINEERING

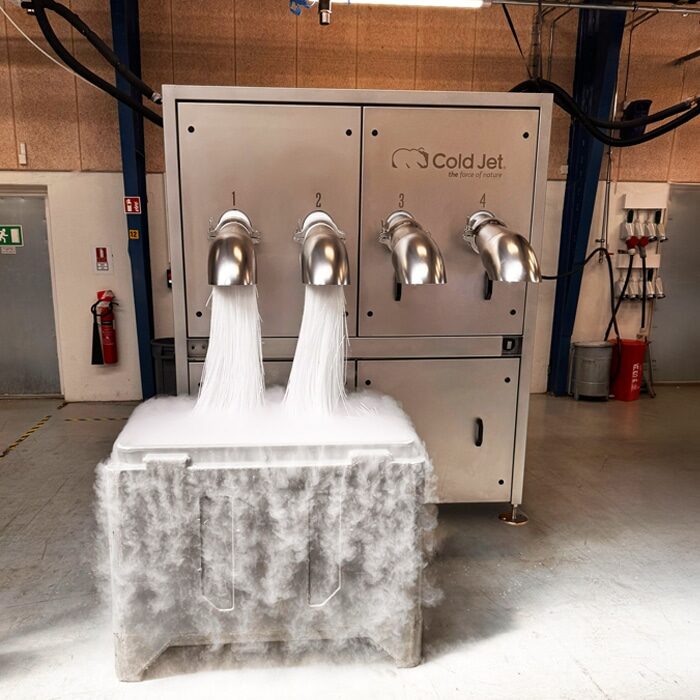

The PR1500H is designed for high-volume, versatile output. It features four independent barrels, providing a robust foundation for continuous production.

Automatic Die Change: Each barrel is equipped with two dies as standard, featuring automatic die change technology to eliminate downtime and minimize CO2 loss.

Customizable Configuration: For operations requiring even greater versatility, an option for three dies per barrel is available, allowing for more variety in pellet sizes without manual intervention.

Dual-Size Production: The complete version of the PR1500H can produce two different pellet sizes simultaneously, catering to diverse application needs in a single run.

Downloads:

PR1500H Spec Sheet

Request Pricing

The Cold Jet Difference:

The PR1500H Advantage

Proprietary Sub Cooling Technology

Lowest conversion factor on the market.
Intuitive Display

Panel PC with built in 15” touch screen allows remote support with an internet connection.
Fully automated

One button operation enables ease of use and quick start up.
Cold Jet CONNECT®

Remotely monitor, diagnose and implement corrective action from any location.

Dry Ice Pelletizer Features

Closed chamber technology ensures short start up time and fast production
Panel PC with built in 15” touch screen allows remote support with an internet connection
Machine parts protected by a moisture-free enclosure reduces the noise level to 75db (A)
Sub Cooling technology minimizes CO₂ waste
Automatic change extruder plate

Dry Ice Pelletizer Specifications

Dimensions 87" x 71.6" x 84.6" (2210 x 1820 x 2150 mm)
Weight 8818 lbs (4000 kg) - Includes Hydraulic Oil
Part # 90636 (CE 380V, 50 HZ); 90637 (UL 480V, 60 HZ)
CO2 Supply pressure range 188-261 psi (13-18 bar) with pressure tolerance +/- 14.5 psi (1 bar)
Connection at the machine 1 ½” weld flange connection
Compressed Air Supply 116 – 145 psi (8-10 bar)
Air quality ISO 8573-1, Minimum Class 3
Back Pressure on Revert Gas Less than 14.5 psi (less than 1 bar)
Exhaust Gas Pipe Internal diameter 4.5 in (114 mm)
Power Supply 3 x 480 V AC / 60Hz (3 x 400 V AC / 50Hz) Imax. 63 A Solidly Grounded Wye Source (TN-S Earthing System)
Rated Power 33.5 Hp (25 kW)
Noise Level Below 80 dB(A)
Production Area Requirements Ambient Temperature Limits between 41°F and 109°F (5°C and 43°C)
Optional Oil Heater or Oil Cooler System

Extruder Plates

Allow your dry ice production equipment to meet all your production needs with the proper pellet or nugget die plate. Cold Jet's pelletizers can be properly outfitted to ensure optimal performance and reliability.
Automatic Three Die Changer (Optional)

The new PR1500H features a 4-barrel configuration with the option to integrate triple die changers. This allows operators to load and maintain up to 12 dies within the equipment at once, offering unparalleled flexibility.
Integrated Dehumidifier (Optional)

Adding a dehumidifier eliminates internal moisture, preventing destructive frost buildup and costly extrusion die clogs. This drastically reduces maintenance downtime and ensures continuous, high-efficiency production of pure dry ice.
Valves and LDS (Optional)

The new PR1500H features optional upgrades, including a liquid CO2 valve, a gaseous CO2 valve, a liquid degassing system, and a VCO2 check valve. Together, these components guarantee maximum efficiency in liquid-to-dry-ice conversion.
