COMBI® PCS® AUTOMATED DRY ICE BLASTING SOLUTION





Greater control.

Greater versatility.

Greater automation.

AUTOMATED ALL-IN-ONE

DRY ICE BLASTING SOLUTION



The COMBI PCS Series of machines combine our industry leading dry ice pelletizers with our advanced dry ice blasters for an autonomous and environmentally sustainable cleaning, surface preparation, and parts finishing system. Our dry ice pelletizers offer the best conversion ratio of liquid CO2 on the market while producing the highest quality dry ice.

Our most technologically advanced dry ice blaster incorporates our Particle Control System® (PCS), offering greater control for any application. The COMBI PCS Series of machines will take any cleaning, surface preparation, and parts finishing processes to the next level.



TELL ME MORE     DOWNLOAD SPECS



Greater control.

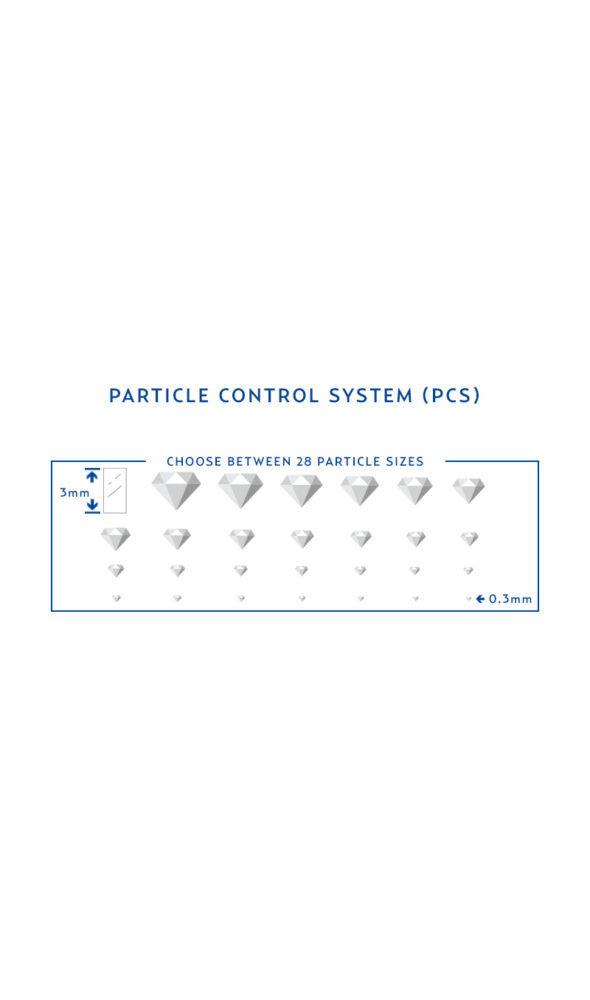

Three words: Particle. Control. System.

Take control of your processes with the COMBI PCS system. Our patented Particle Control System (PCS) offers greater control for automated environmentally sustainable cleaning, surface preparation, and parts finishing processes.

Depending on the contaminant and substrate to be cleaned, programmers can precisely cut dry ice particles from 3.0mm to 0.3mm and every size in between with our PCS system.

Control your production. Control your blasting. Control your efficiencies.



TELL ME MORE     DOWNLOAD SPECS

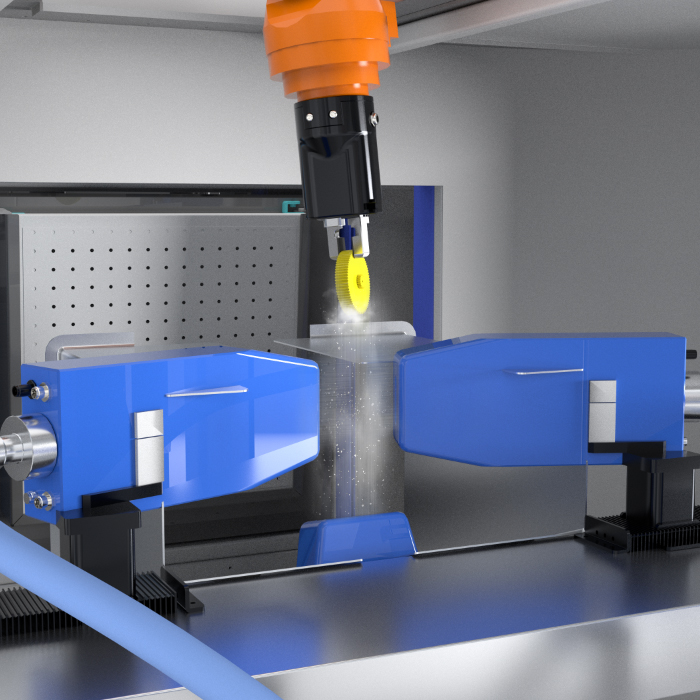

Greater versatility.

Three machines. Countless applications.

The COMBI PCS series provides three system configurations for countless applications. From two simultaneous blasting operations with the COMBI PCS 110 to four simultaneous blasting operations with the COMBI PCS 320 DUAL.

Control your production. Control your blasting. Control your efficiencies.



TELL ME MORE     DOWNLOAD SPECS

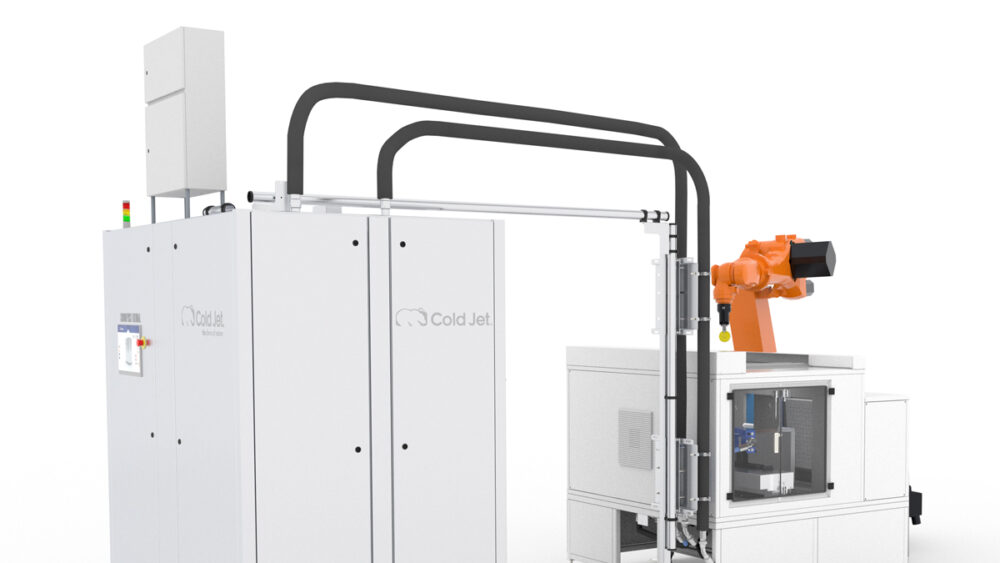

Greater automation.

Integration for the future.

The COMBI PCS systems are built for integration. Easily adapt this system with a robotic arm for continuous operation in blast cabinets or automated conveyor cleaning lines. Reduce manual labor hours and bottlenecks while improving part quality and minimizing scrap.

Control your production. Control your blasting. Control your efficiencies.



TELL ME MORE     DOWNLOAD SPECS

Which COMBI PCS system is right for you?



Cold Jet COMBI PCS 110

COMBI PCS 110

Run up to 2 automated blasting operations simultaneously



Dry Ice Output

Produce up to 110 kg/hr (242.5 lb/hr)



Blasting Output

Blast up to 110 kg/hr (242.5 lb/hr)

(dependent on particle size)



Dry Ice Particle Size

0.3 mm – 3.0 mm



Simultaneous Blasting Operation

Up to 2 with splitter



HMI Display

16″ Multi-touch Beckhoff Industrial PC



Noise Level

Below 75 dB(A) (without nozzle)



Inlet Liquid CO2 Pressure

13 – 18 bar (189 – 261 psi)

-33 / -22 C (-27 / -9 F)

Optimal Performance Range

15 – 16 bar (218 – 232 psi)

-29 / -27 C (-20 / -17 F)



Compressed Air Supply

5 – 10 bar (72.5 – 145 psi)



Air Quality

ISO 8573-1, Minimum class 2



Nozzle Air Consumption

3 – 11 m3/min (106 – 388 CFM)



Compressed Air Connection

1.5″ BSP Thread



Machine Dimensions (L x W x H)

1800 x 1200 x 2200 mm

70.9 x 47.3 x 86.6 in



Power Supply

3 x 380 – 480 V AC + PE, 50 – 60 Hz



Rated Power

10 kW / 13 HP

Cold Jet COMBI PCS 110 DUAL

COMBI PCS 110 DUAL

Run up to 4 automated blasting operations simultaneously



Dry Ice Output

Produce up to 110 kg/hr (242.5 lb/hr)



Blasting Output

Blast up to 110 kg/hr (242.5 lb/hr)

(dependent on particle size)



Dry Ice Particle Size

0.3 mm – 3.0 mm



Simultaneous Blasting Operation

Up to 4 with splitters



HMI Display

16″ Multi-touch Beckhoff Industrial PC



Noise Level

Below 75 dB(A) (without nozzle)



Inlet Liquid CO2 Pressure

13 – 18 bar (189 – 261 psi)

-33 / -22 C (-27 / -9 F)

Optimal Performance Range

15 – 16 bar (218 – 232 psi)

-29 / -27 C (-20 / -17 F)



Compressed Air Supply

5 – 10 bar (72.5 – 145 psi)



Air Quality

ISO 8573-1, Minimum class 2



Nozzle Air Consumption

3 – 11 m3/min (106 – 388 CFM)



Compressed Air Connection

1.5″ BSP Thread



Machine Dimensions (L x W x H)

1800 x 1200 x 2200 mm

70.9 x 47.3 x 86.6 in



Power Supply

3 x 380 – 480 V AC + PE, 50 – 60 Hz



Rated Power

10 kW / 13 HP

Cold Jet COMBI PCS 320 DUAL

COMBI PCS 320 DUAL

Run up to 4 automated blasting operations simultaneously



Dry Ice Output

Produce up to 320 kg/hr (705 lb/hr)



Blasting Output

Blast up to 220 kg/hr (485 lb/hr)

(dependent on particle size)



Dry Ice Particle Size

0.3 mm – 3.0 mm



Simultaneous Blasting Operation

Up to 4 with splitters



HMI Display

16″ Multi-touch Beckhoff Industrial PC



Noise Level

Below 75 dB(A) (without nozzle)



Inlet Liquid CO2 Pressure

13 – 18 bar (189 – 261 psi)

-33 / -22 C (-27 / -9 F)

Optimal Performance Range

15 – 16 bar (218 – 232 psi)

-29 / -27 C (-20 / -17 F)



Compressed Air Supply

5 – 10 bar (72.5 – 145 psi)



Air Quality

ISO 8573-1, Minimum class 2



Nozzle Air Consumption

3 – 11 m3/min (106 – 388 CFM)



Compressed Air Connection

1.5″ BSP Thread



Machine Dimensions (L x W x H)

2100 x 1300 x 2200 mm

82.7 x 51.2 x 86.6 in



Power Supply

3 x 380 – 480 V AC + PE, 50 – 60 Hz



Rated Power

15 kW / 20 HP

TELL ME MORE     DOWNLOAD SPECS

Automation at work.

  • Automotive

    Integrated dry ice blasting enables automated deburring
