• DS1000E Square

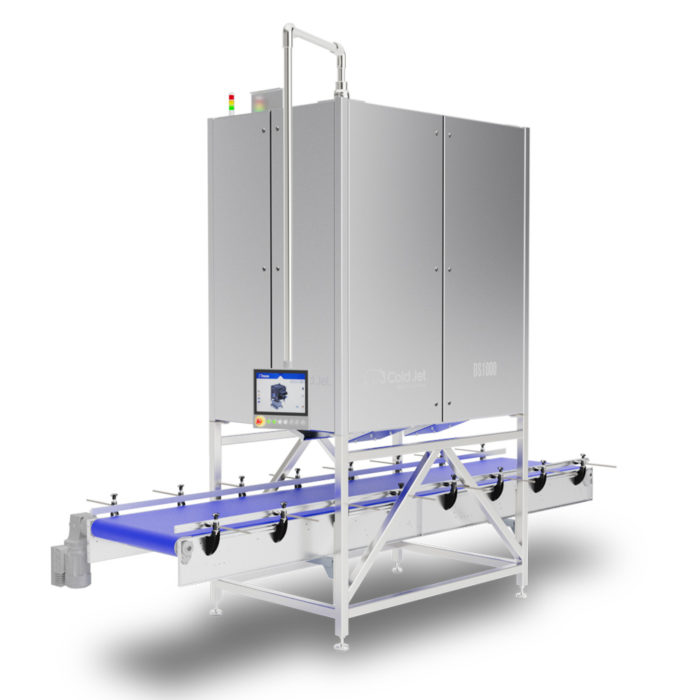

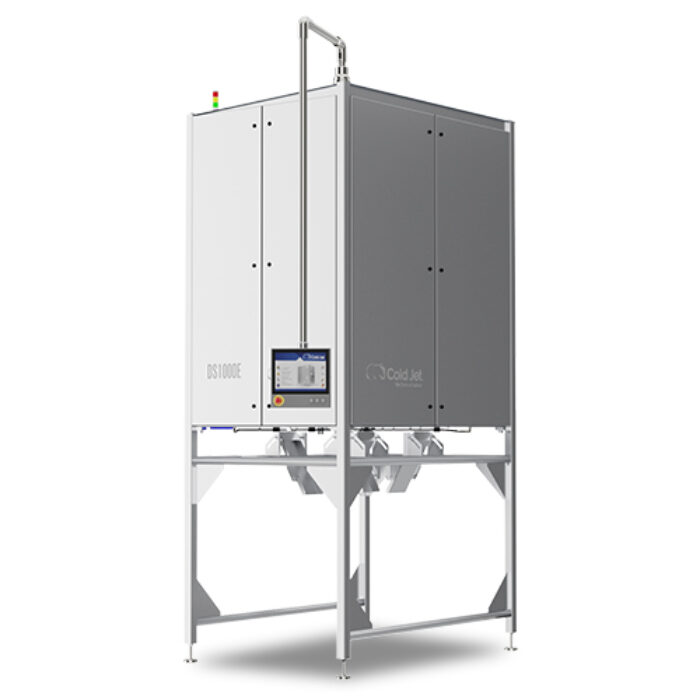

  • Cold Jet DS1000E Dry Ice Slice Production unit

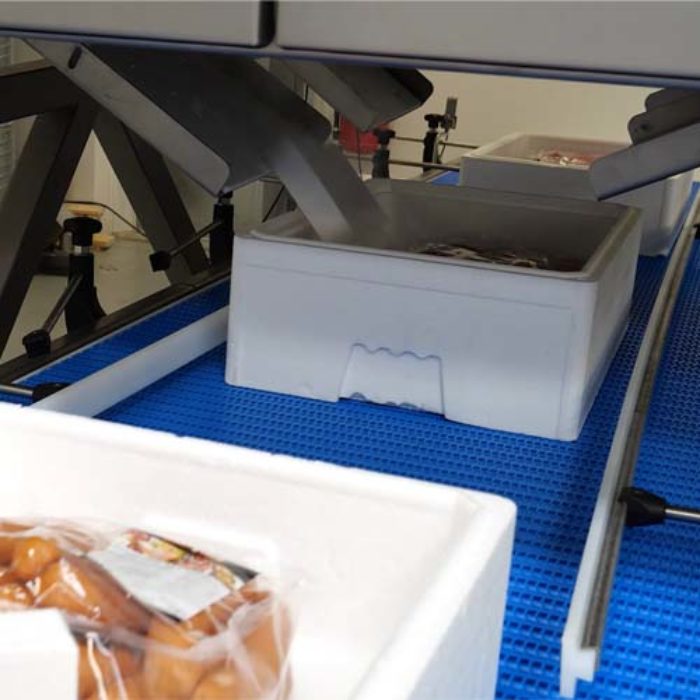

  • Cold Jet DS1000E dry ice slice dosing system

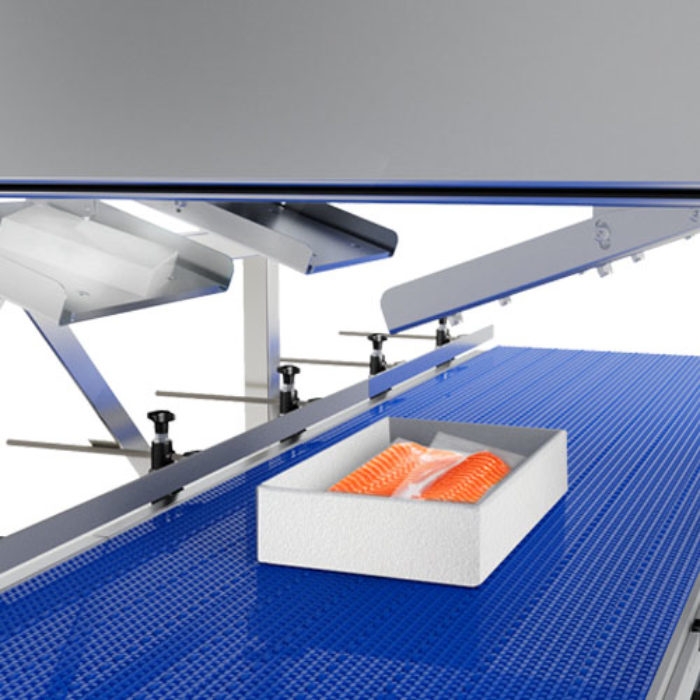

  • Cold Jet DS1000E dry ice slice dosing

The Cold Jet Difference:

The DS1000E Advantage

  • Fully Electric

    Requires no hydraulic pressure to produce dry ice slices of optimum density

  • Intuitive Display

    Vary slice weight from 0.5 - 2.2lbs (0.25 - 1kg). Use recipe programs to save predefined slice weight

  • Four Slice Press Heads

    Providing optimal dosing capacity, speed, and accuracy

  • Servo Technology

    For fast and precise motion control, minimizing dry ice waste

DS1000E Features

  • Can be directly integrated in the existing production line
  • Ideal for dosing directly into parcels
  • Stainless steel enclosure Panel PC with built-in 15.6″ touch screen
  • Fully automated, one-button operation
  • Equipped with 4 cylinders – increased output

DS1000E Specifications

  • Dimensions 78.7" x 49.6" x 133.9" (2000 x 1260 x 3400 mm)
  • Weight 4016.8 lbs (1822 kg)
  • Power Supply 3 x 400 V/50 Hz and 3 x 480 V/60 Hz
  • Power Connection AC + PE, TN-S Earthing System
  • Slice Production Rate Up to 2,204 lb/hr (1,000 kg/hr)
  • Dry Ice Slice Sizes 5 x 5 x 0.5 in (125 x 125 x 15 mm) to 5 x 5 x 2.3 in (125 x 125 x 60 mm)
  • Dry Ice Slice Weights 0.5 lbs (0.25kg) to 2.2 lbs (1 kg)
  • Noise Level Below 78 dB(A)
  • Part # 90636 (CE 380V, 50 HZ); 90637 (UL 480V, 60 HZ)

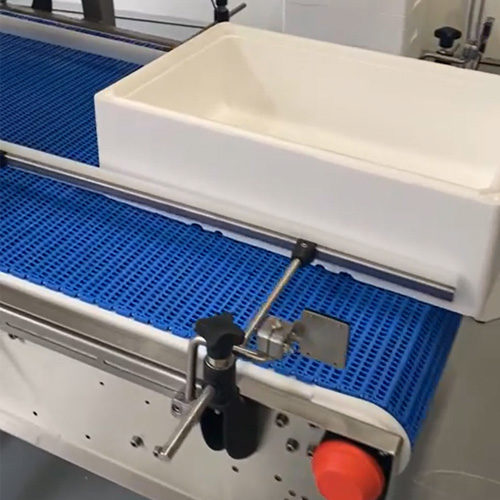

  • Conveyor Belts & Adjustment Accessories

    Ask about our custom conveyor belt solutions for fully automated dry ice production systems.

    Learn More

DS1000E Maintenance Plans

Maintain your DS1000E with a custom Cold Jet Maintenance Plan
