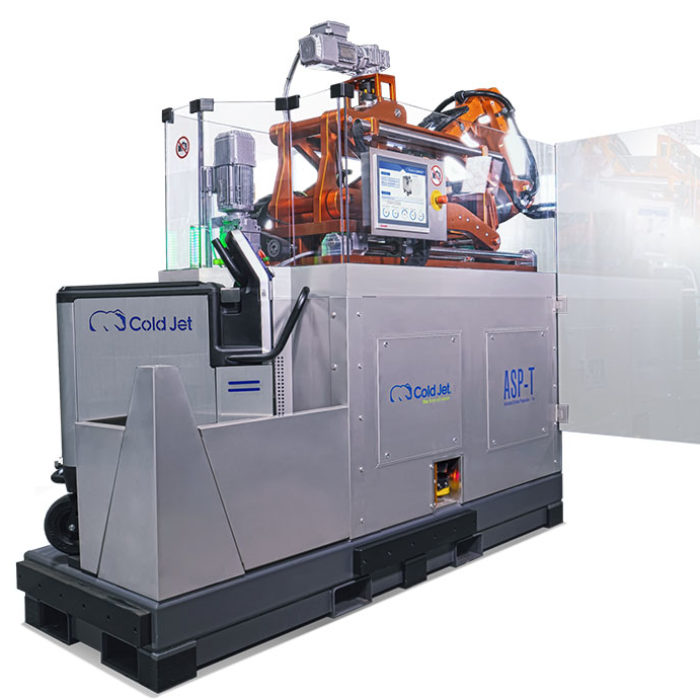

• Cold Jet ASP-T integrated dry ice blasting equipment

The Cold Jet Difference:

The ASP-T Advantage

  • Faster and More Effective Clean

    Offers an online, quick and effective way to clean without damaging molds.

  • Non-abrasive Process

    Safely clean without damaging molds or vents.

  • Improved Tool Utilization

    Clean in-place without cooldown or disassembly, resulting in less downtime.

  • Easily Adjust to Multiple Molds

    The process parameters can be adjusted to fit the selected cleaning program according to the requirements of the winter or summer tire molds, with or without spring vents.

ASP-T Features

  • PCS® 60 dry ice blasting machine
  • KUKA industrial robot
  • Unique nozzles designed for the tire industry
  • 28 different dry ice particle sizes – adjustable according to cleaning parameters
  • One panel control system with open design
  • Windows 10 operating system
  • IoT Capability – Cold Jet CONNECT®
  • Safety features: SICK safety modules, blast protection wall, safety area monitoring, emergency stop system
  • Beckhoff automation systems
  • Bosch profiles
  • Festo pneumatic devices

ASP-T Specifications

  • Dimensions 106 in, 37 in, 91 in (2700 mm, 950 mm, 2300 mm)
  • Stroke Vertical: 118 in (3000 mm); Horizontal: 24-90 in (600-2300 mm)
  • Weight 4409 lb (2000 kg)
  • Hopper size 60 lb (27 kg), 3 mm pellet supply
  • Air supply Min. 106 ft3 (3 cbm), min. 87 psi (6 bar), ISO8573.1 class 1
  • Power supply 400 V, 32 A, 3 Ph; 3 kW
  • Nozzles

    A wide and dynamic line of the industry’s most technologically advanced and efficient nozzles.

  • Hoses

    A complete range of flexible and durable air and blast hoses.

  • Additional Accessories

    Enhance your cleaning experience with accessories that make blasting easier.

asp-t Upgrades

Customize the ASP-T for your needs
