AUTOMATED DRY ICE DOSING & BAGGING SYSTEM





Greater control.

Greater versatility.

Greater automation.

AUTOMATED ALL-IN-ONE

DRY ICE DOSING & BAGGING SOLUTION

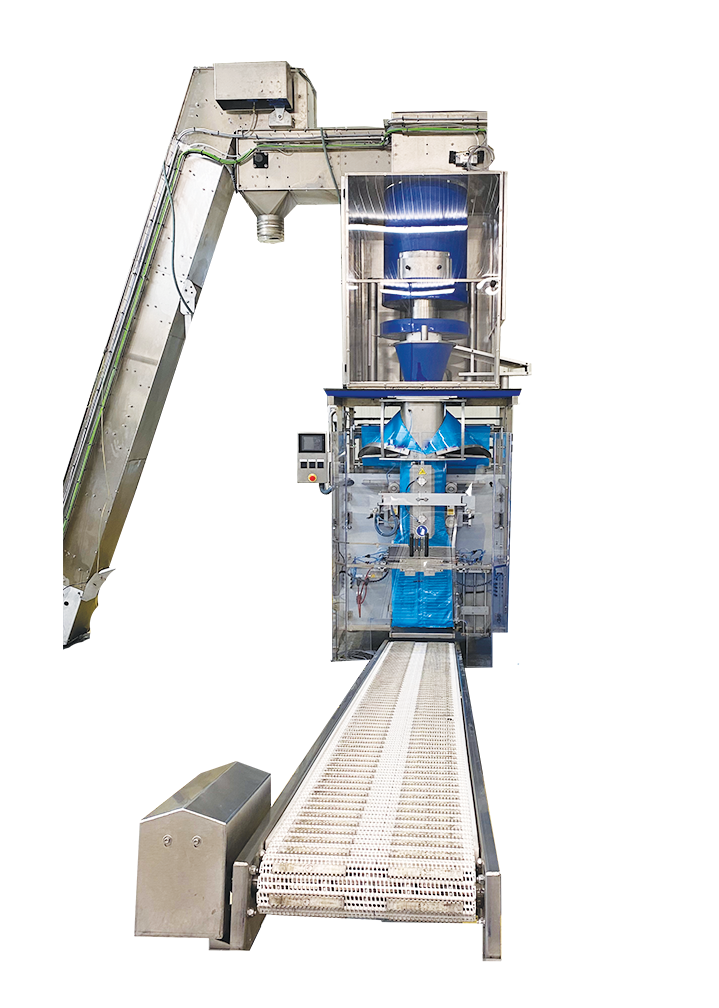

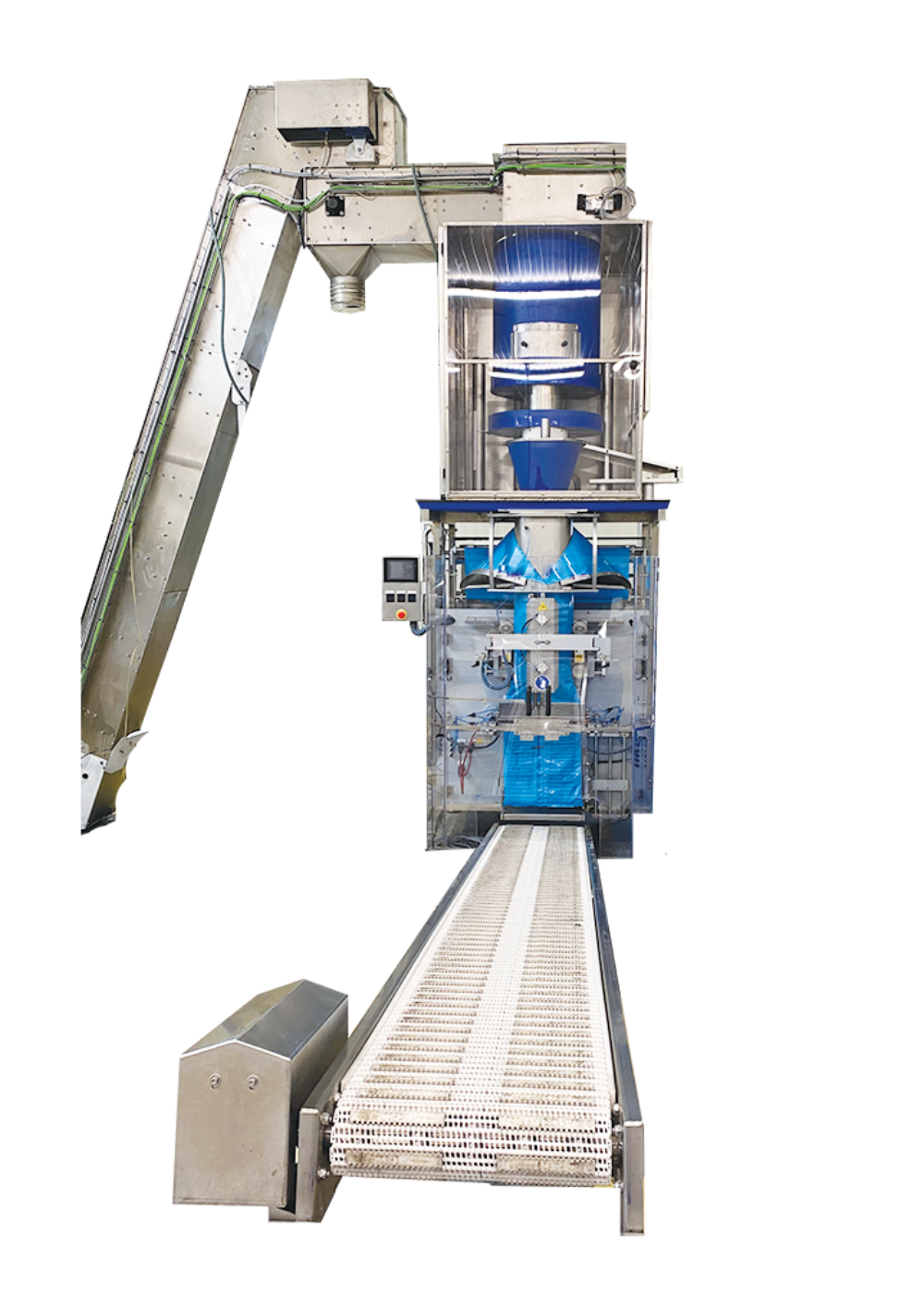

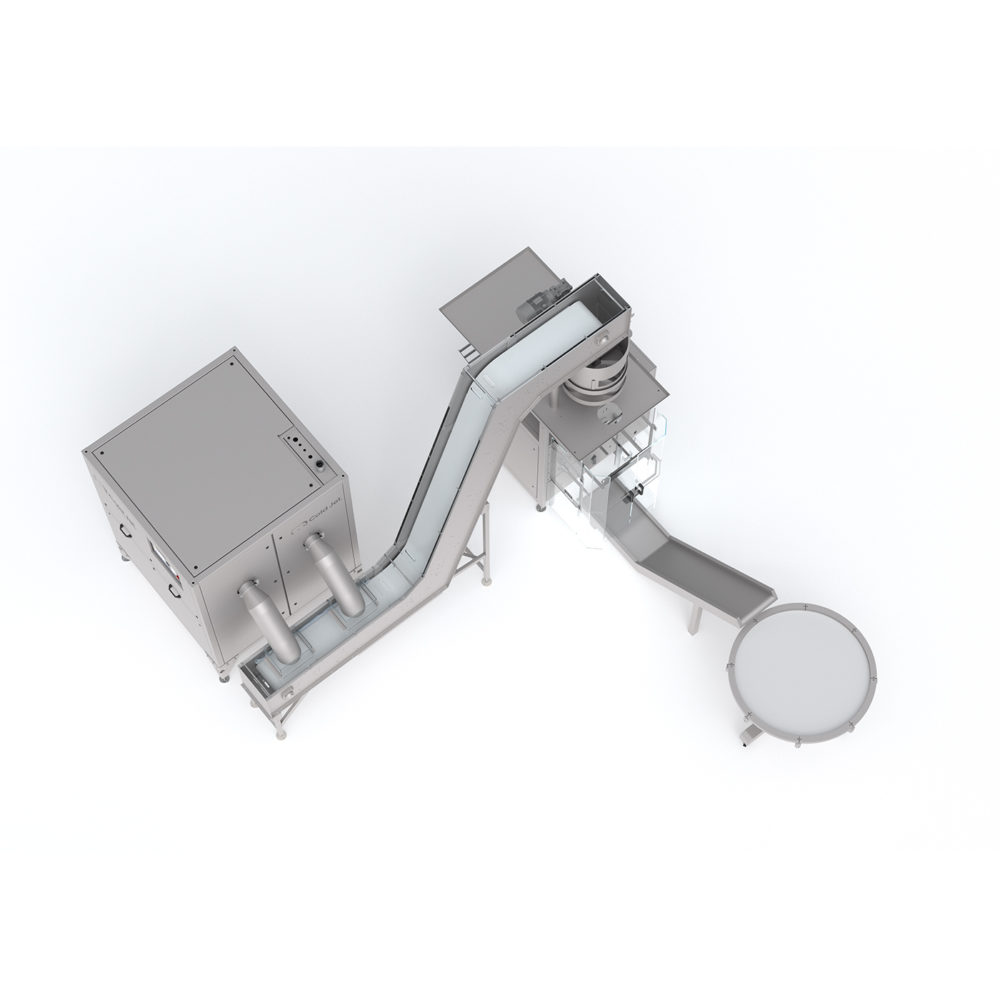

The Dry Ice Dosing & Bagging System combine our industry leading dry ice pelletizer with our advanced dry ice dosing and bagging systems for an autonomous and environmentally sustainable dry ice production and packaging solution. Our dry ice pelletizers offer the best conversion ratio of liquid CO2 on the market while producing the highest quality dry ice.

TELL ME MORE     DOWNLOAD SPECS

Greater control.

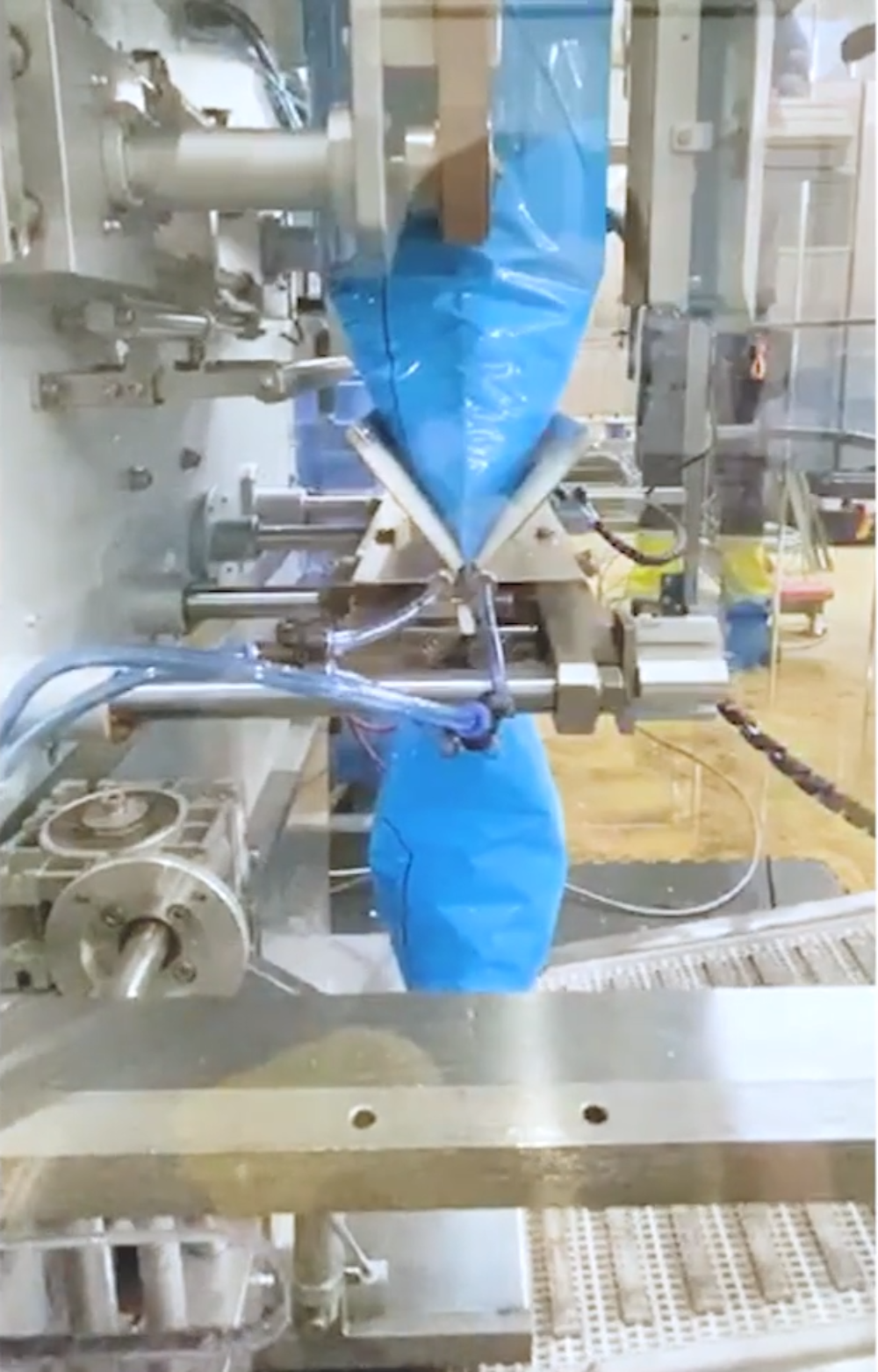

Confidently dose and bag dry ice.

The Cold Jet Dry Ice Dosing & Bagging Systems allow operators to easily and confidently prepare dry ice packages with accuracy. Our automated extruder plate changer allows operators to switch between various dry ice nugger and pellet sizes from our intuitive touch screen control panel.

Control your production. Minimize your downtime. Control your efficiencies.



TELL ME MORE     DOWNLOAD SPECS

Greater versatility.

Three machines. Countless applications.

The COMBI PCS series provides three system configurations for countless applications. From two simultaneous blasting operations with the COMBI PCS 110 to four simultaneous blasting operations with the COMBI PCS 320 DUAL.

Control your production. Control your blasting. Control your efficiencies.



TELL ME MORE     DOWNLOAD SPECS

Greater automation.

Integration for the future.

The COMBI PCS systems are built for integration. Easily adapt this system with a robotic arm for continuous operation in blast cabinets or automated conveyor cleaning lines. Reduce manual labor hours and bottlenecks while improving part quality and minimizing scrap.

Control your production. Control your blasting. Control your efficiencies.



TELL ME MORE     DOWNLOAD SPECS

Which Dry Ice Dosing & Bagging System is right for you?





Cold Jet Dry Ice Bagging & Dosing 3000

CJ-BD 3000

Dose and package up to 25 bags per minute



Dry Ice Processing Capacity

Process up to 750 kg/hr

(1,650 lb/hr)



Dry Ice Input Size

3 – 16 mm

(0.12 – 0.63 in)



Weight of Dry Ice Bags

500 – 3,000 g

(1.1 – 6.6 lb)



Tolerances on Weight

+/- 5%



Bag Size (W x L)

250 x 380 mm

(10 x 15 in)



Film Max Width

630 mm

(25 in)



Noise Level

Below 75 dB(A)



Machine Dimensions (L x W x H)

1800 x 1200 x 2200 mm

70.9 x 47.3 x 86.6 in



Power Supply

3 x 380 – 480 V AC + PE, 50 – 60 Hz



Rated Power

10 kW / 13 HP

Cold Jet Dry Ice Bagging & Dosing 5000

CJ-BD 5000

Dose and package up to 35 bags per minute



Dry Ice Processing Capacity

Process between 750 – 1,500 kg/hr

(1,650 – 3,300 lb/hr)



Dry Ice Input Size

3 – 16 mm

(0.12 – 0.63 in)



Weight of Dry Ice Bags

500 – 5,000 g

(1.1 – 11 lb)



Tolerances on Weight

+/- 5%



Bag Size (W x L)

300 x 520 mm

(12 x 20 in)



Film Max Width

630 mm

(25 in)



Noise Level

Below 75 dB(A)



Machine Dimensions (L x W x H)

1800 x 1200 x 2200 mm

70.9 x 47.3 x 86.6 in



Power Supply

3 x 380 – 480 V AC + PE, 50 – 60 Hz



Rated Power

10 kW / 13 HP

Cold Jet Dry Ice Bagging & Dosing 12000

CJ-BD 12000

Dose and package up to 35 bags per minute



Dry Ice Processing Capacity

Process between 750 – 3000 kg/hr

(1,650 – 6,140 lb/hr)



Dry Ice Input Size

3 – 16 mm

(0.12 – 0.63 in)



Weight of Dry Ice Bags

1,000 – 12,000 g

(2.2 – 26 lb)



Tolerances on Weight

+/- 5%



Bag Size (W x L)

400 x 700 mm

(16 x 28 in)



Film Max Width

630 mm

(25 in)



Noise Level

Below 75 dB(A)



Machine Dimensions (L x W x H)

2100 x 1300 x 2200 mm

82.7 x 51.2 x 86.6 in



Power Supply

3 x 380 – 480 V AC + PE, 50 – 60 Hz



Rated Power

15 kW / 20 HP

TELL ME MORE     DOWNLOAD SPECS
